Optimized Performance with More Capability and Capacity

scaWaterjet

Designed for User Productivity and Comfort, Engineered for Function and Quality

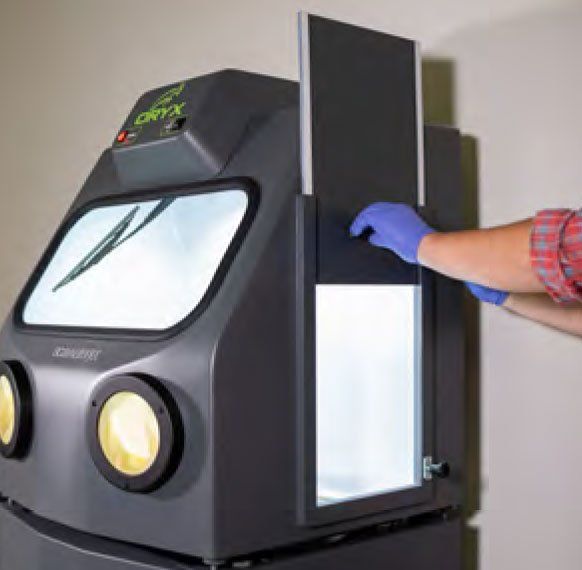

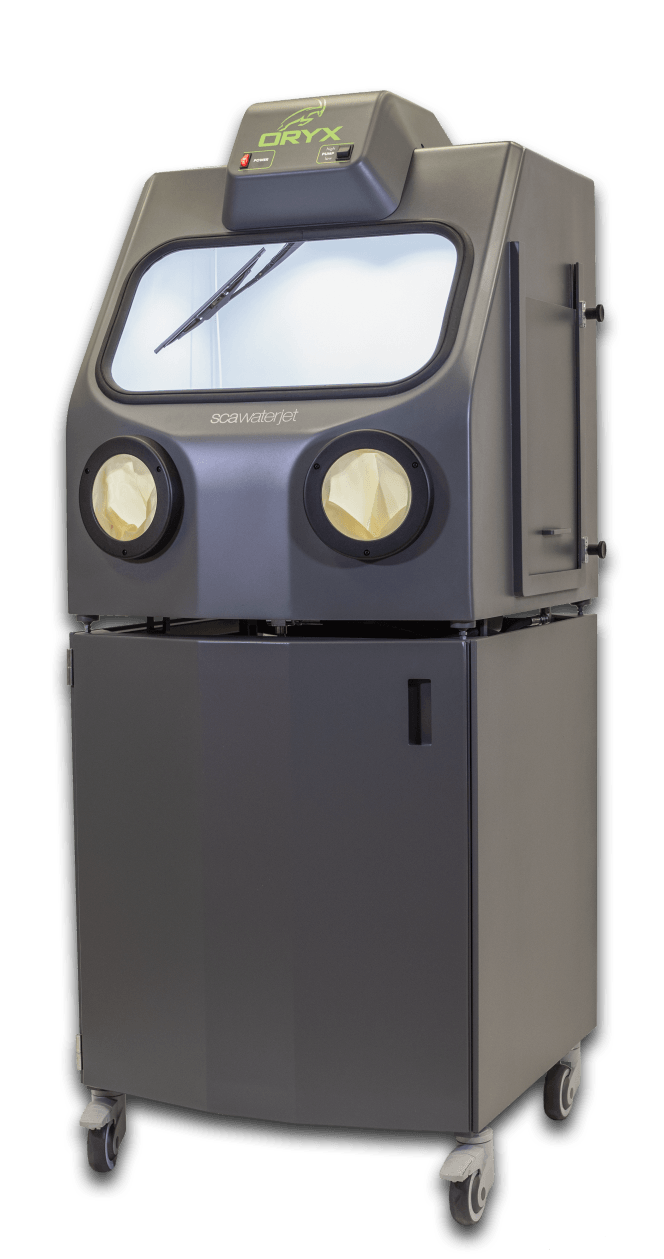

The scaWaterjet is a water jetting spray booth capable of coarse and fine support material removal for various AM processes. The capability to be plumbed direct or used stand-alone with an included mobile water tank allows for industrial uses or difficult-to-plumb situations such as offices. It features a gasketed window with internal mount wiper blade assembly for clear view of the LED-illuminated work area, ergonomically-considered front cabinet design & gloved ports for operator part handling, with two water-jetting spray wands - both capable of high- and low-pressure operation to fit the needs of support removal for your delicate and rigid parts alike. The covered mobile support frame minimizes collection of shop debris and dust inside the cabinet, while also allowing for a sit/stand option for operators, with easy access to the pump and holding tank. The scaWaterjet was specifically designed to meet your AM-based water spray & jetting needs.

scaWaterjet

Designed for User Productivity and Comfort, Engineered for Function and Quality




OverallSize: 30.0 W x 29.5 D x 71.5 H in.(76.0 W x 75.0 D x 181.6 H cm)

Holding Tank Capacity: 5 gallons (19 liters)

Maximum Model Size: 19.5 x 15.5 x 8 in. (49.5 x 39.4 x 20.3 cm)

Power Requirements: 120V~ 60Hz - 15A or 230V~ 50 Hz - 8A versions

Electrical Protection: 15A / 225VAC Fuse

Maximum Pressure: 1700 psi (117 bars)

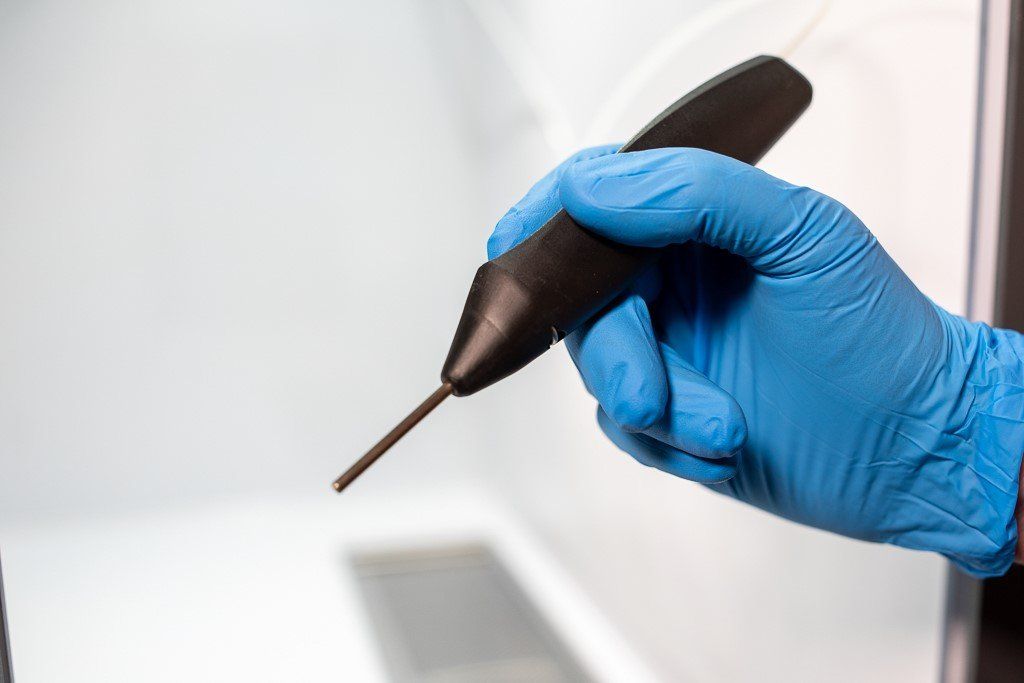

Dual Spray Wands/Nozzles: 15 spray bulk removal/ 0 spray fine detail removal

Dual Spray Speeds: High and Low capable with both wand/nozzle type

Easy-to-see work space w/ Integrated internal LED Lighting & Window Wiper

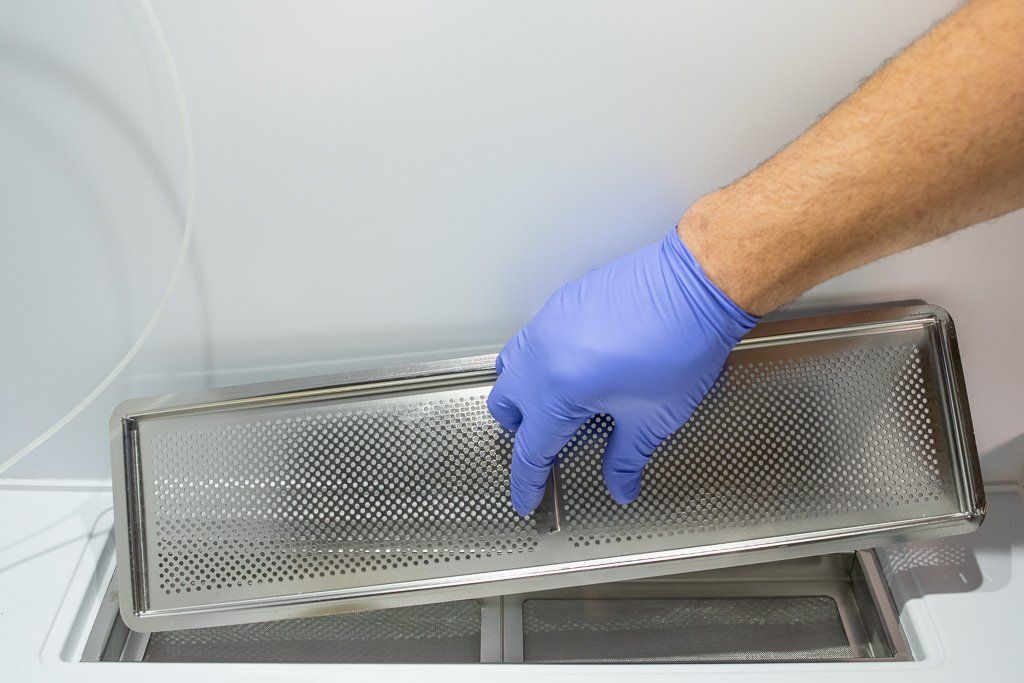

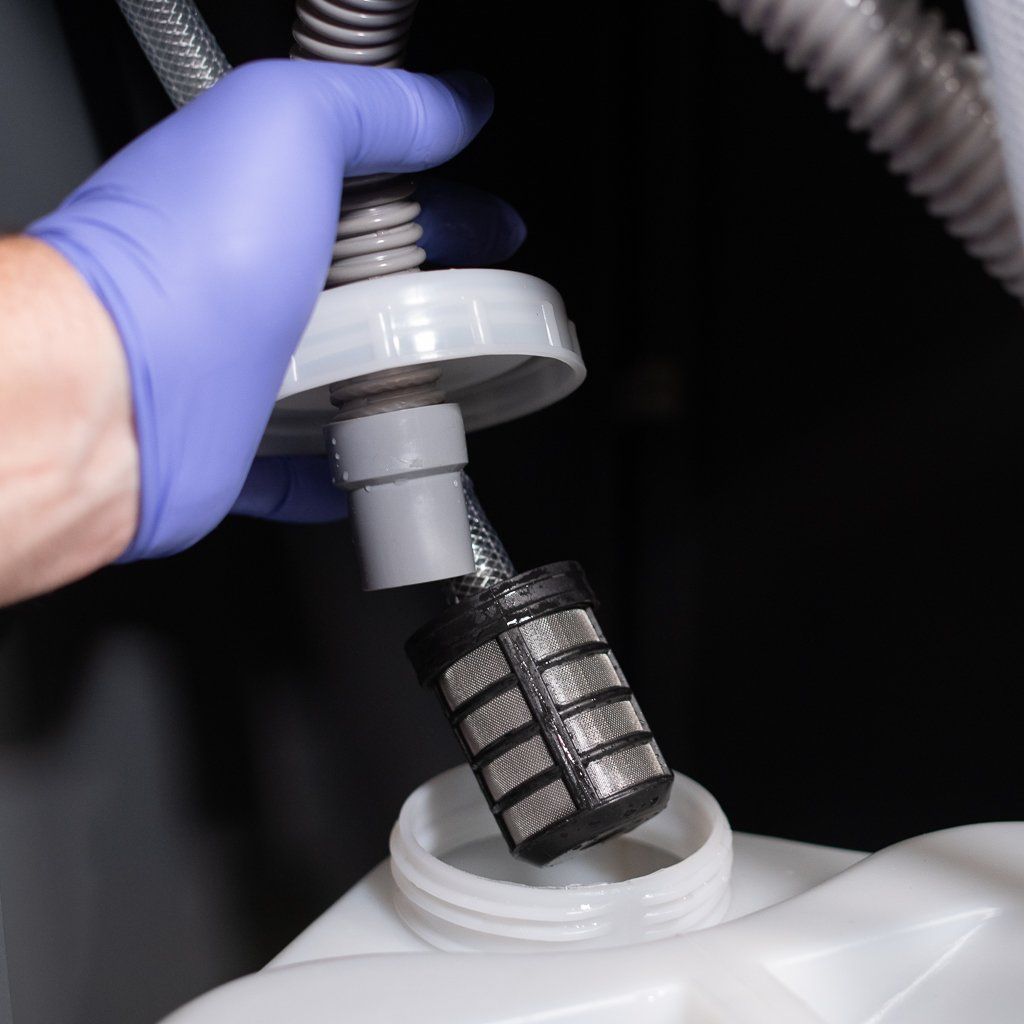

Fine and Coarse Screen Filters in work area w/ additional filter on intake hose

Integral closed Cabinet to protect Pump & Holding Tank area

Increased Mobility with Casters on All 4 Legs

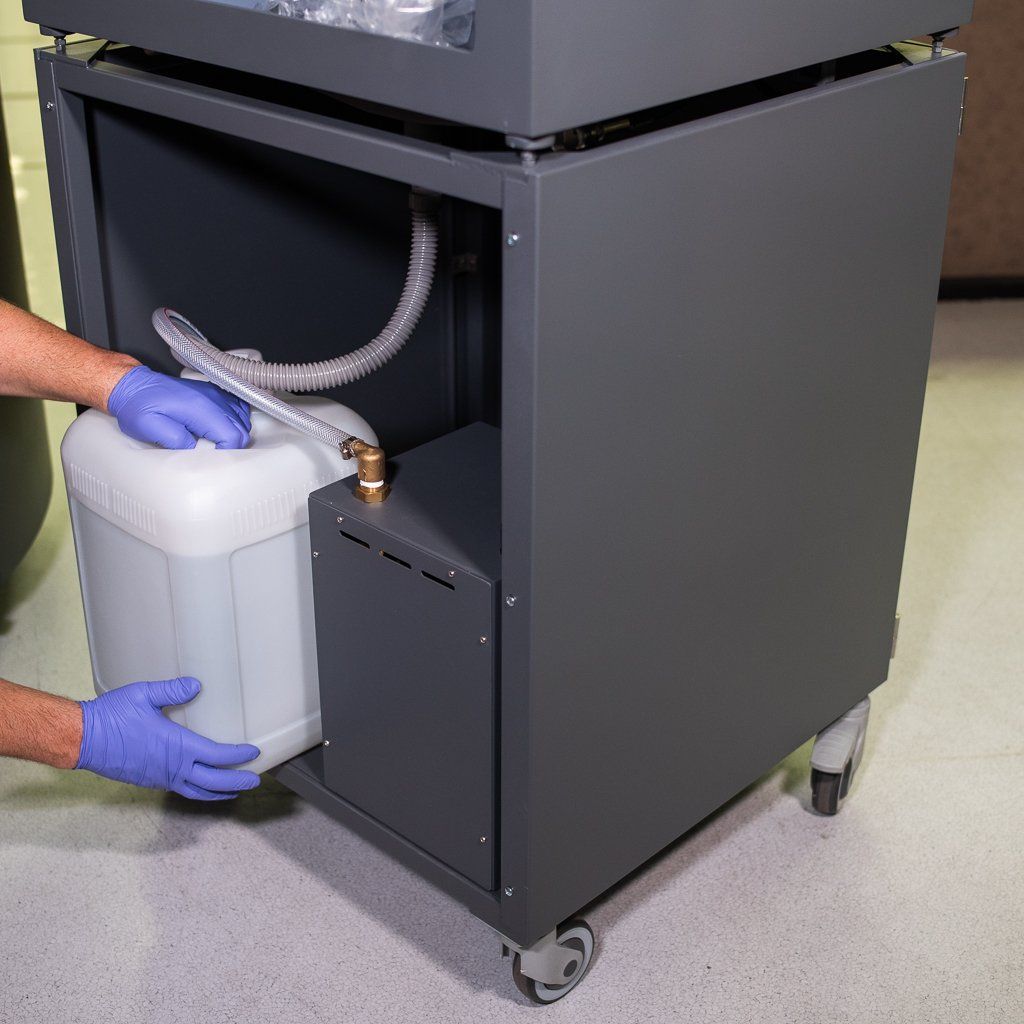

2 Function Modes for water hookup: (1) Direct plumbing - minimum flow of 1.5 gallons/min. (5.7 liters/min.), (2) Mobile self-contained w/ integrated Tank (no flow or external pressure req.)

Low Water Intake/ Consumption: Less than 1.5 gallons/min. (5.7 liters/min.)

Wide temperature operating range: 41° to 104° F (5° - 40° C)

CE, cTUVs, RoHS, WEEE Regulatory Approvals

1 Year Warranty & US-based Technical/Customer Support with strong AM industry experience

scaWaterjet User Manuals

Click below to download user manuals and product spec documents for the scawaterjet.


The scaWaterjet is a water-pressure based cleaning system capable of removing support material from multiple 3D printed models with rapid bulk and fine detail jetting options. The ergonomic, aesthetically considered design & other unique features make it a superior product for AM service firms, industrial manufacturers, laboratories, offices & other firms with in-house prototyping capability. Manufactured by ORYX with the heavy focus on reliability and durability that the AM industry has come to expect from the sca1200ht and sca3600, scaWaterjet continues the sca legacy and sets the new standard for water jet spraying.
