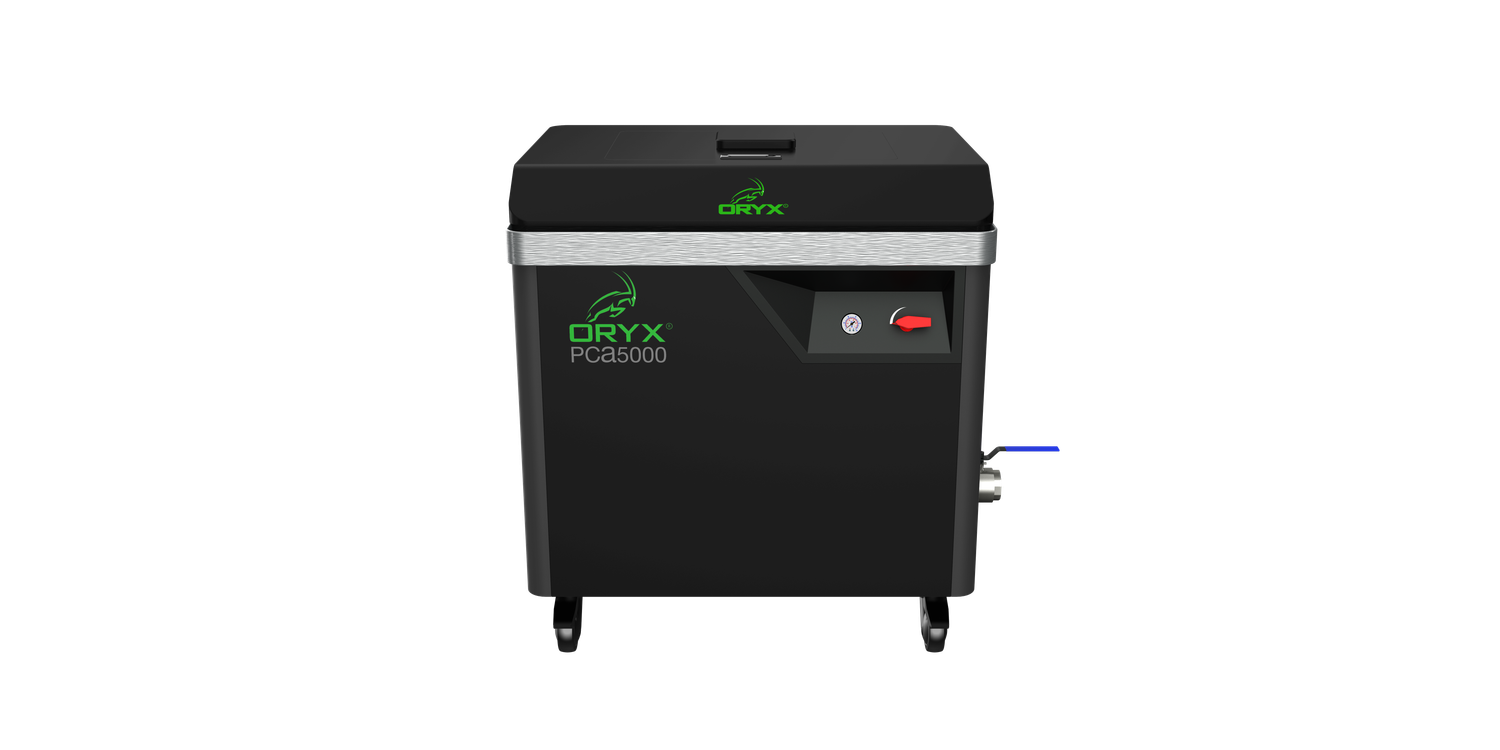

403001-01, pca5000

The pca5000 is a Photopolymer Cleaning Apparatus (PCA) designed for cleaning large 3D parts made with photopolymer
resins using micro-air bubbler technology with IPA, DPM and other applicable solvents. The machine utilizes shop air and a manifold system to create
micro-air bubbles and remove uncured resin from the surface of 3D printed parts.

The pca5000 by ORYX® is supplied with a large wire basket for cleaning parts.

• Overall Size: 97cm H x 89 cm W x 69 cm L (38 in x 35 in x 27 in)
• Parts Basket Size: 31 cm H x 65 cm W x 41 cm L (12 in x 25.5 in x 16 in)
• Tank Volume: 115 Liters (30.4 gal)
• Power Requirements: No electrical, compressed air 60-80 psi
• Compatible with IPA, DPM and other applicable solvents
• Ideal large size cleaning apparatus for all photopolymer printing systems
